Industrial Quality Lathe for Sale (now donated to Gayle Mill)

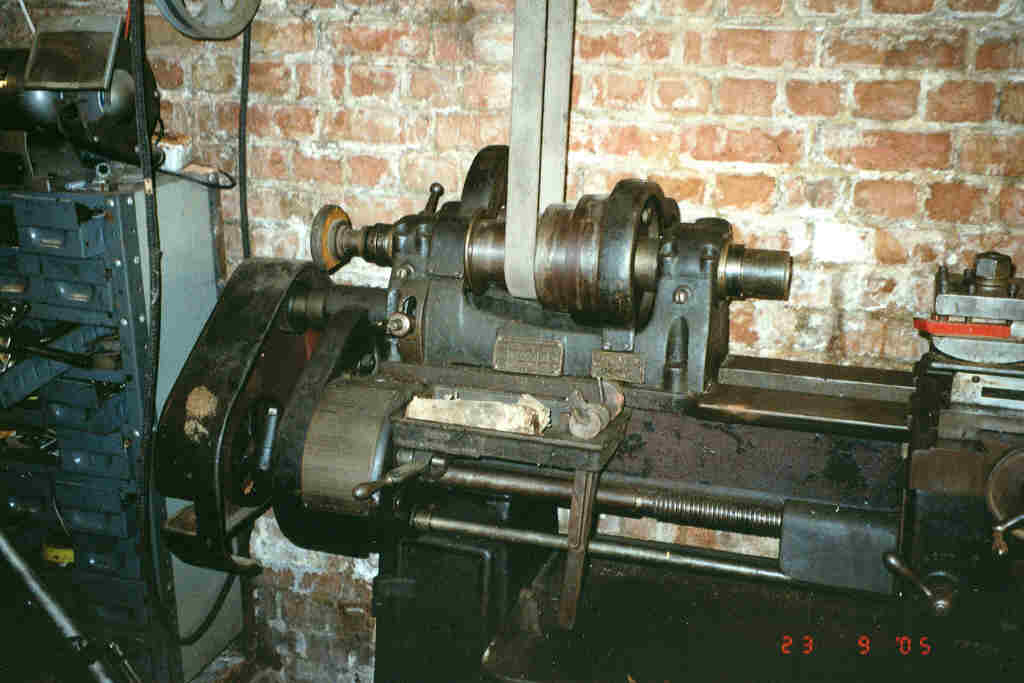

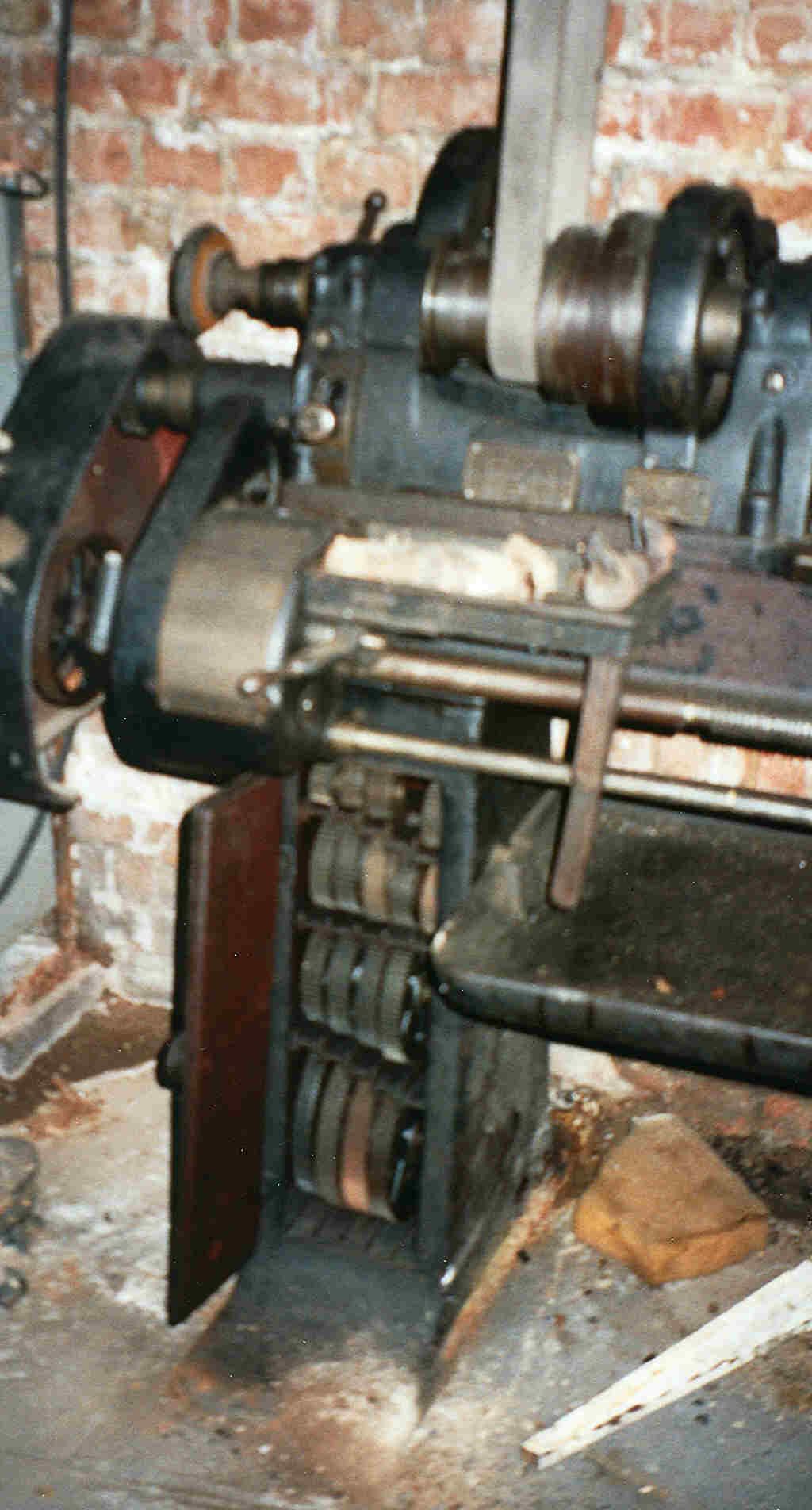

Holbrook Lathe: ideal for Steam-Roller/Steam-Tractor enthusiast.

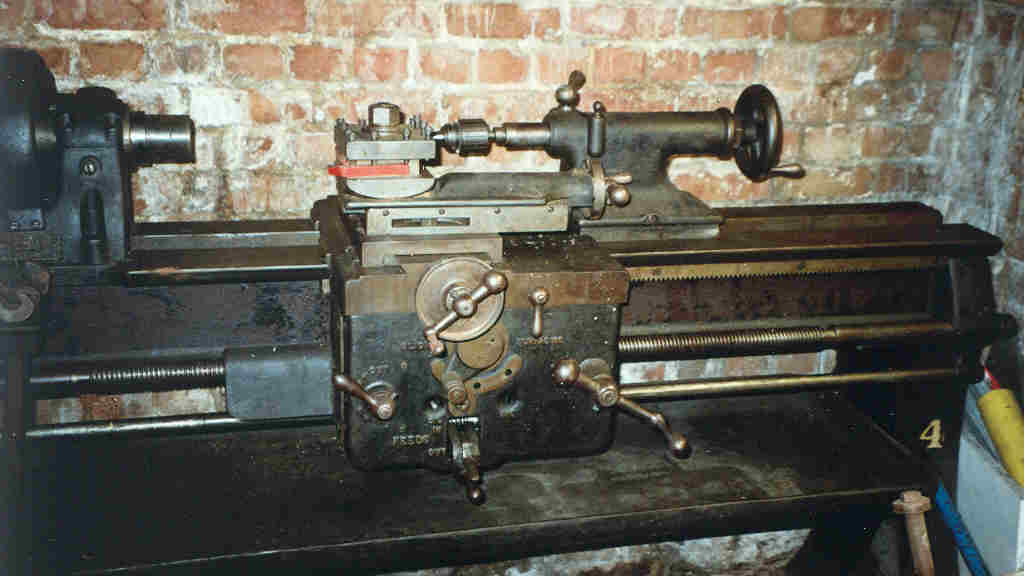

Powered traverse and powered cross-slide.

Full screw-cutting facilities Whitworth & Metric, with all the relevant change gearwheels included.

Half-horsepower electric motor available in full working order.

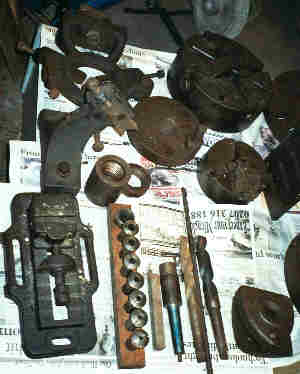

Two three-jaw and two four-jaw chucks and two faceplates, plus a full set of seven collets for working on rods.

Eight speeds (RPM):
400, 250,160, 100
with backgear:
44,27,17,11

Formerly used by the engineering dept at Imperial College London, this lathe has been installed in my garage for over 30 years. Reluctantly I have decided that I really don't use it enough and it would probably be more gainfully employed with someone else.

click to magnify.

click to magnify.

click to magnify.

click to magnify.

click to magnify.

click to magnify.

click to magnify.

We will assist in dismantling transporting and re-installing this lathe as we really want it to go to a 'good home'

Bill.
